31.3mm Factory Manufacturer Metal 2.4G Stamping Antenna for Satellite Dish Antenna Metal Stamping Internal Antenna

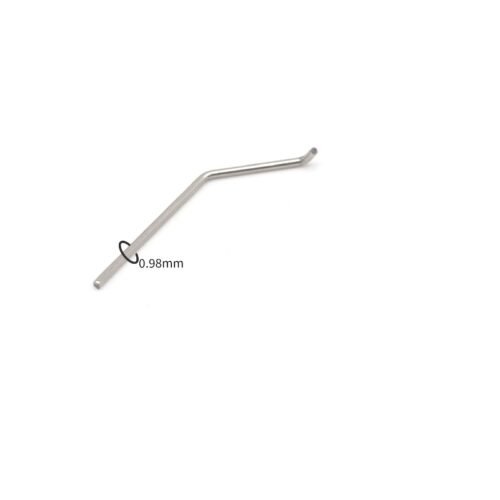

Silver metal bent wire internal stamped antenna showing 0.98mm diameter

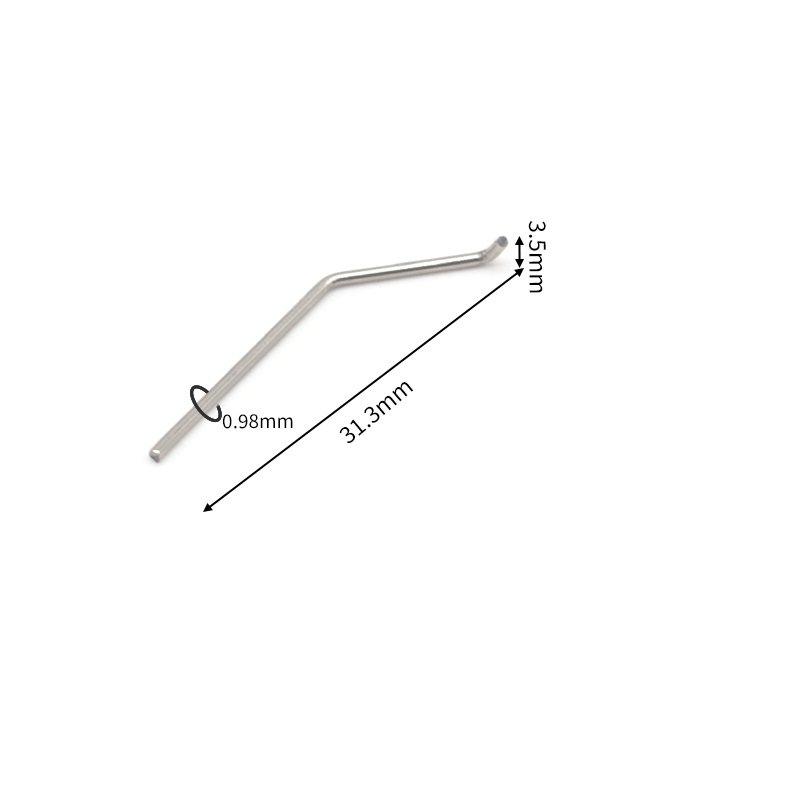

Bent stamped metal wire antenna 31.3mm long with 0.98mm diameter leg

31.3mm Factory Manufacturer Metal 2.4G Stamping Antenna for Satellite Dish Antenna Metal Stamping Internal Antenna

Highly conductive High tensile elasticity, The conductivity of the antenna is strong and has a good compression and stretching effect
ANTI-CORROSION, ANTI-TEMPERATURE, LONG SERVICE LIFEService life test more than 20,000 times Salt spray test 48hours, strict quality control
High impedance matching Antenna and device impedance matchingReduces power loss in wireless devices

product details

This 31.3 mm metal stamping antenna is designed for 2.4G Wi-Fi RF boards in satellite dish antenna equipment and similar integrated receivers. It uses a direct-weld interface and an omnidirectional pattern, allowing placement inside a confined enclosure.

Specifications

Frequency Range: 2.4G
Impedance: 50Ω
V.S.W.R: ≤2.0
Gain: 2dBi
Polarization: linearity
Radiation Direction: omnidirectional
Antenna Name: Shrapnel antenna
Connector Type: Direct welding
Antenna Material: Stainless steel
Power Capacity: 2W
Operating Temperature: -40℃~+80℃
Storage Temperature: -40℃~+85℃

Applications

Applications for this 2.4G antenna include Wi-Fi modules, wireless gateways, IP cameras, and IoT boards. The omnidirectional coverage works in any mounting orientation within the device, and the stainless-steel material suits continuous indoor operation.

Yunding offers OEM/ODM service, including custom sizes to match the equipment housing.
