40x15mm IPEX/U.FL 4G LTE Built-in flexible FPC WIFI Antenna

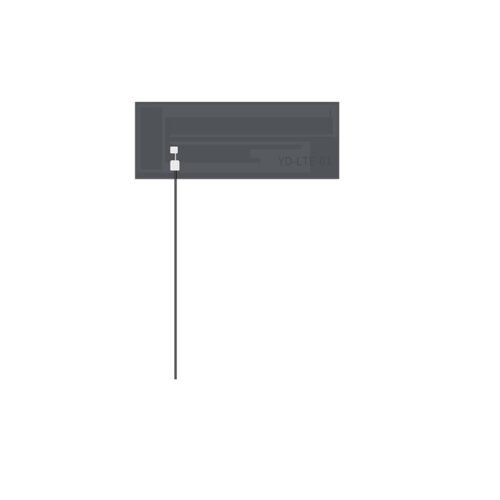

Black rectangular FPC antenna with attached cable and YD-LTE-01 marking

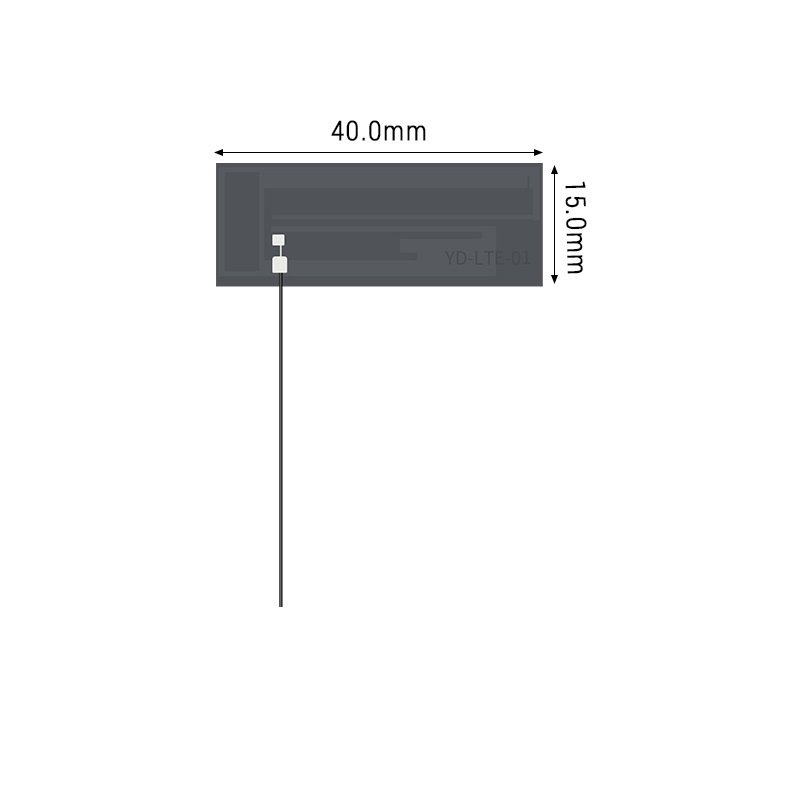

Rectangular FPC antenna 40mm by 15mm with side mounted coax tail

40x15mm IPEX/U.FL 4G LTE Built-in flexible FPC WIFI Antenna

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This 40 x 15 mm flexible FPC antenna comes with an IPEX or U.FL connector and is built for 4G LTE and WiFi modules that need an internal radiator. The thin film mounts inside the device, keeping the exterior clean.

Specifications

Frequency Range: 698-2700MHz
V.S.W.R: ≤1.5
Impedance: 50Ω
Gain: 4dBi
Polarization: linearity
Antenna Name: FPC internal antenna
Antenna Cable: RG1.13 or Customized
Connector Type: IPEX / Direct welding (Customized)
Antenna Material: Pure copper
Operating Temperature: -30℃ ~ +75℃
Application Field: Wireless monitoring / WIFI / ZIGBEE / Bluetooth module / Smart home / Smart wear

Applications

The 698-2700 MHz band covers 4G LTE routers, WiFi access points, IoT modules, and wireless monitoring. Bluetooth and ZigBee module boards, plus smart-home and smart-wear devices, also fall within the covered range.

OEM and ODM support includes custom cable length, connector termination, and antenna shape.
