42*12mm FPC Antenna Built In Circuit Board Antenna 4G LTE Flex FPC Antenna With RF1.13 Wire RF Connector

Black rectangular FPC antenna marked YD-RT712-4G with black wire and gold RF connector

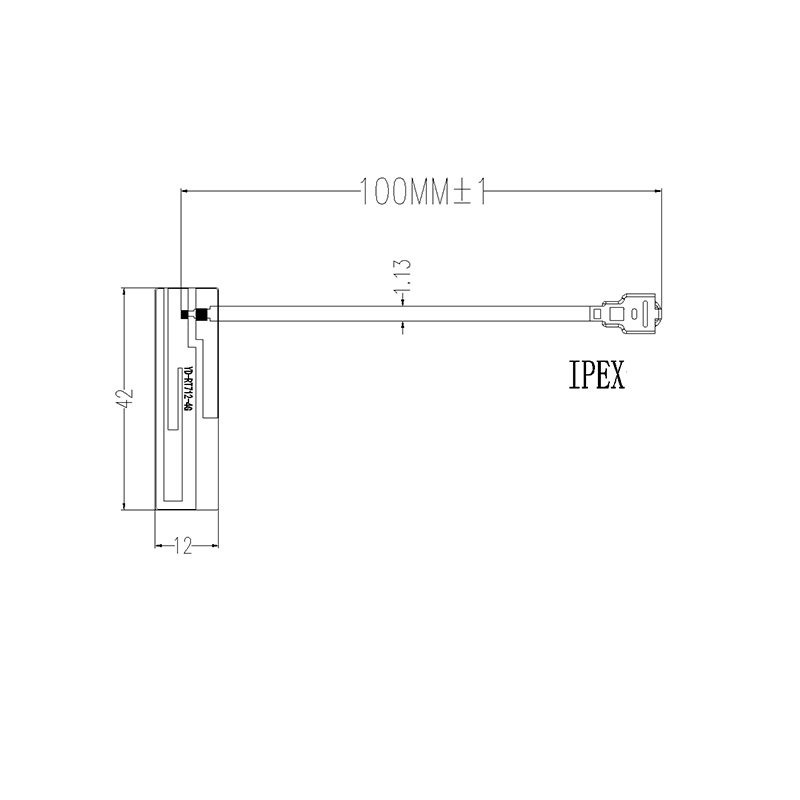

Drawing of a 42mm FPC antenna with a 100mm IPEX pigtail cable

42*12mm FPC Antenna Built In Circuit Board Antenna 4G LTE Flex FPC Antenna With RF1.13 Wire RF Connector

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This 42 x 12 mm FPC antenna is intended for direct placement on a circuit board inside 4G LTE equipment. It covers 698-2700 MHz and is supplied with an RF1.13 wire and RF connector for a fixed feed on the board.

Specifications

Connector Type: IPEX / Direct welding (Customized)
Frequency Range: 698-2700MHz
Gain: 3dBi
V.S.W.R: ≤1.5
Impedance: 50Ω
Polarization: linearity
Antenna Name: FPC internal antenna
Antenna Material: Pure copper
Antenna Cable: RG1.13 or Customized
Operating Temperature: -30℃ ~ +75℃
Application Field: Wireless monitoring / WIFI / ZIGBEE / Bluetooth module / Smart home / Smart wear

Applications

The 698-2700 MHz band serves 4G LTE and GSM modules, so this antenna fits LTE routers, IoT and M2M gateways, and wireless monitoring units. WiFi, ZigBee, and Bluetooth module boards, smart-home controllers, and smart wear can share the radiator.

Yunding Antenna accepts OEM and ODM orders, with custom wire length, connector, and size available.
