60.7x16mm 698-2700mhz Interna 4G Built-in Flexible FPC Antenna With IPX UFL

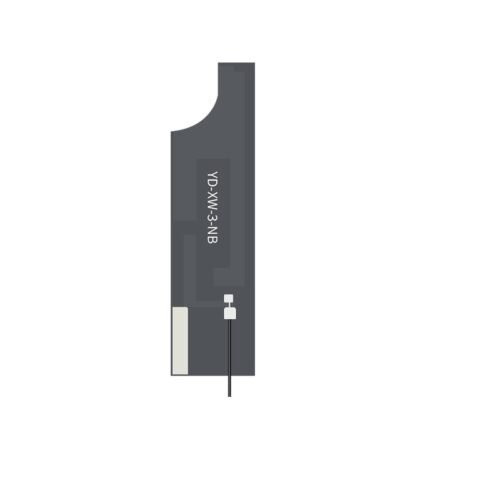

Black flexible FPC antenna with top cutout, printed traces, cable and UFL connector.

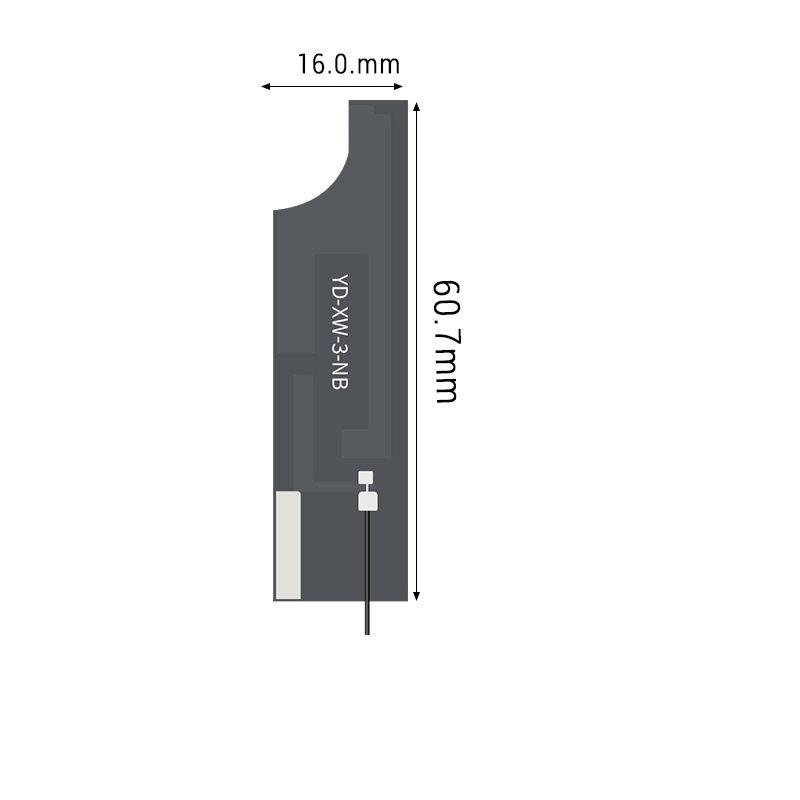

Notched FPC antenna 60.7mm tall and 16mm wide with adhesive backing strip

60.7x16mm 698-2700mhz Interna 4G Built-in Flexible FPC Antenna With IPX UFL

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This 60.7 x 16 mm internal FPC radiator carries IPX and UFL terminations and is built for 4G devices that keep the aerial inside the chassis. The flexible film bends around internal components, which simplifies placement in compact products.

Specifications

Frequency Range: 698-2700MHz
V.S.W.R: ≤1.5
Impedance: 50Ω
Gain: 4dBi
Polarization: linearity
Antenna Name: FPC internal antenna
Antenna Cable: RG1.13 or Customized
Connector Type: IPEX / Direct welding (Customized)
Antenna Material: Pure copper
Operating Temperature: -30℃ ~ +75℃
Application Field: Wireless monitoring / WIFI / ZIGBEE / Bluetooth module / Smart home / Smart wear

Applications

Suitable for 4G LTE routers, IoT and M2M terminals, wireless monitoring, and smart-home controllers, the antenna also matches ZigBee and Bluetooth modules that work within 698-2700 MHz.

OEM and ODM service is available, with customization of cable length, connector, and mounting.
