80.1X13.6mm Communication Antenna 4G Antenna 700-2700MHz Full-Band Antenna FPC Antenna IP-EX Connector

Rectangular black FPC antenna with attached cable and CZ08-GSM-YD printed in white.

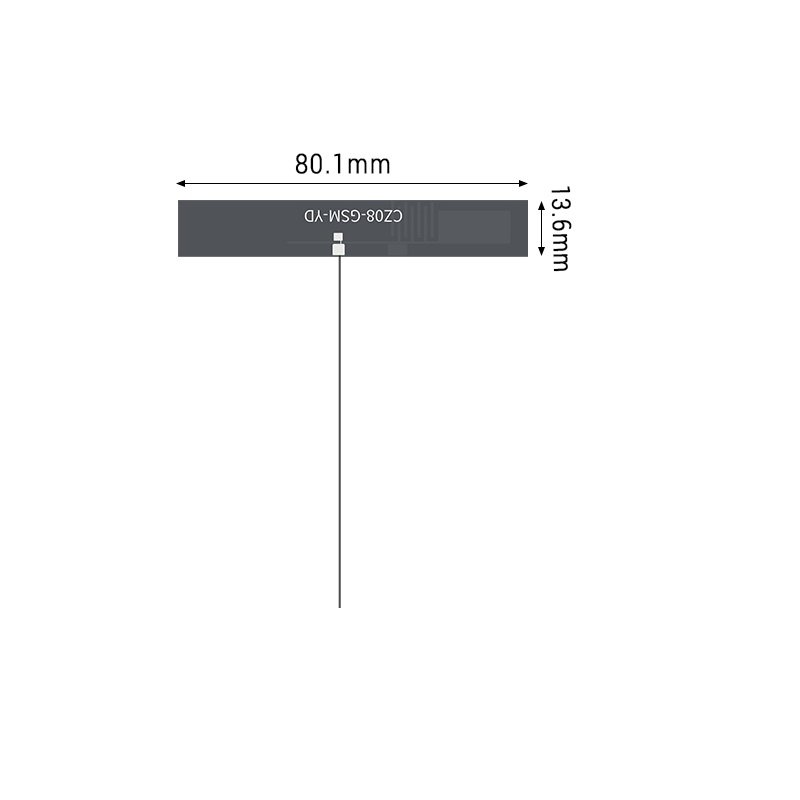

Long flexible 4G antenna strip 80.1mm by 13.6mm with centre feed lead

80.1X13.6mm Communication Antenna 4G Antenna 700-2700MHz Full-Band Antenna FPC Antenna IP-EX Connector

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This 80.1X13.6mm Yunding FPC antenna is a full-band internal antenna covering 698-2700MHz with an IPEX connector, built for 4G applications. The flexible pure-copper element is placed inside communication devices during assembly.

Specifications

Antenna Name: FPC internal antenna
Antenna Frequency Range: 698-2700MHZ
Gain: 5dBi
V.S.W.R: ≤1.5
Impendance: 50Ω
Polarization: linearity
Connector type: IPEX/Direct welding( Customized)
Antenna material: Pure copper
Antenna cable: RG1.13 or Customized
Operating Temperature: -30℃~+75℃
Application field: Wireless monitoring/WIFI/ZIGBEE/Bluetooth module/Smart home/Smart wear

Applications

This antenna suits 4G LTE routers, CPE, IoT and M2M modules, telematics, and wireless terminals that need a full-band internal radiator. The 698-2700MHz span covers the main 4G LTE bands in one element.

OEM/ODM services are available for connector, cable length, and frequency customization.
