99.4X14mm High Gain 5dbi Internal 4G Flexible FPC Wireless Wifi Communication Antenna

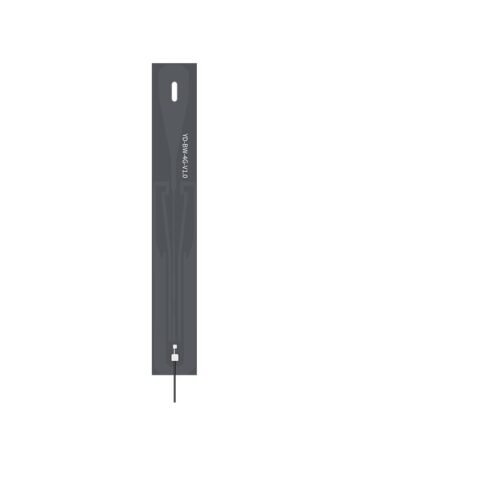

Dark grey rectangular FPC antenna with a coaxial cable and YD-BW-4G-V1.0 text.

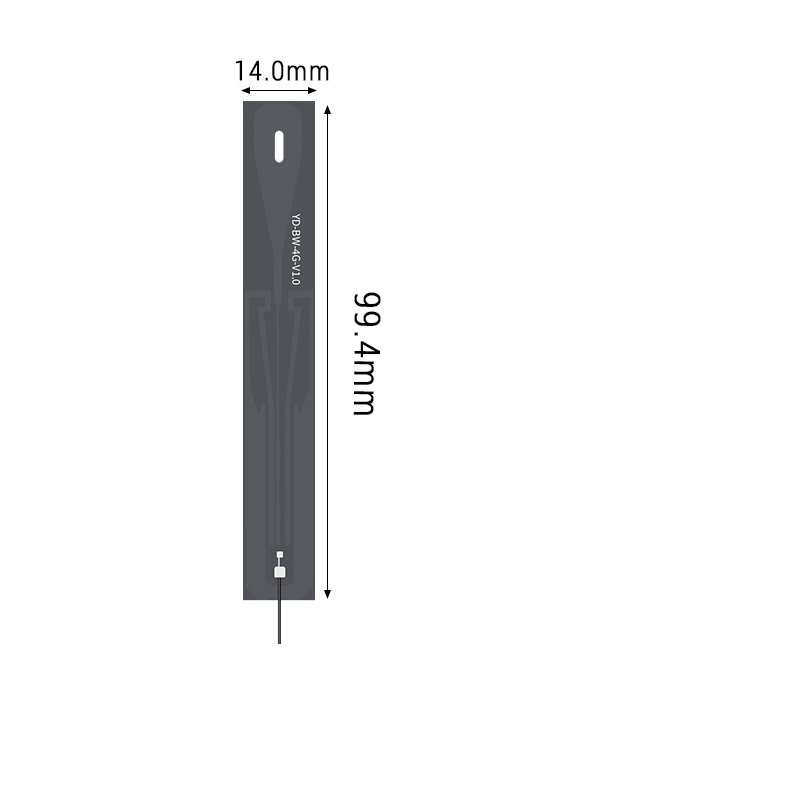

Slim FPC antenna 99.4mm tall and 14mm wide with traced meander pattern

99.4X14mm High Gain 5dbi Internal 4G Flexible FPC Wireless Wifi Communication Antenna

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This Yunding internal 4G FPC antenna measures 99.4X14mm and provides 5dBi gain across 698-2700MHz. Its flexible pure-copper structure is designed for placement inside wireless devices and communication equipment.

Specifications

Antenna Frequency Range: 698-2700MHZ
Gain: 5dBi
V.S.W.R: ≤1.5
Impendance: 50Ω
Polarization: linearity
Antenna Name: FPC internal antenna
Antenna material: Pure copper
Connector type: IPEX/Direct welding( Customized)
Antenna cable: RG1.13 or Customized
Operating Temperature: -30℃~+75℃
Application field: Wireless monitoring/WIFI/ZIGBEE/Bluetooth module/Smart home/Smart wear

Applications

Typical uses include 4G LTE modems, wireless terminals, smart meters, and tracking devices. The full 698-2700MHz coverage supports cellular connectivity in indoor equipment that relies on an internal antenna.

OEM/ODM options include custom connectors, cable lengths, and frequency bands.
