22.4×18.5mm 2.4GHz 5.8G FPC Internal Flexible Vertical 3dbi Soft Whip WiFi Antenna

Flexible orange FPC antenna with a soldered black cable and FPC2218 marking.

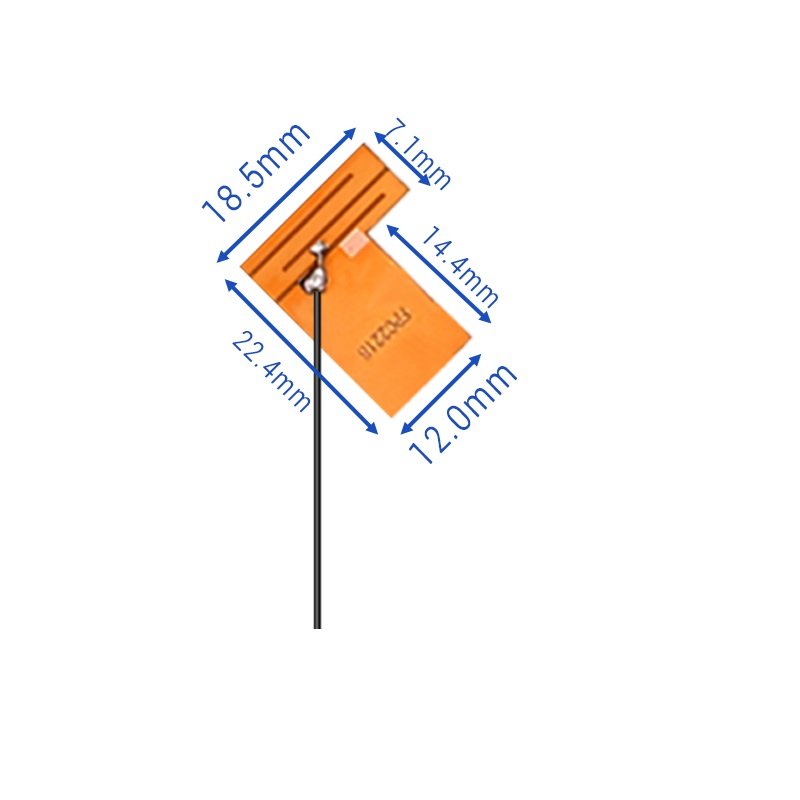

Orange flexible antenna 22.4mm by 18.5mm folded with coax tail

22.4×18.5mm 2.4GHz 5.8G FPC Internal Flexible Vertical 3dbi Soft Whip WiFi Antenna

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

Made as a soft whip type, this 22.4×18.5mm Yunding FPC antenna is an internal flexible vertical antenna for 2.4GHz and 5.8G Wi-Fi links. Its flexible radiator can be routed inside enclosures where a rigid whip would not fit.

Specifications

Antenna Frequency Range: 2400-2500mhz/5100-5800mhz
V.S.W.R: ≤1.5
Impendance: 50Ω
Gain: 3dBi
Polarization: linearity
Antenna Name: FPC internal antenna
Connector type: IPEX/Direct welding( Customized)
Antenna material: Pure copper
Antenna cable: RG1.13 or Customized
Operating Temperature: -30℃~+75℃
Application field: Wireless monitoring/WIFI/ZIGBEE/Bluetooth module/Smart home/Smart wear

Applications

This antenna suits Wi-Fi dongles, routers, smart home appliances, and wireless monitoring devices. The vertical soft whip form bends around internal components while keeping the element upright.

OEM/ODM options include custom connectors, cable lengths, and frequency bands.
