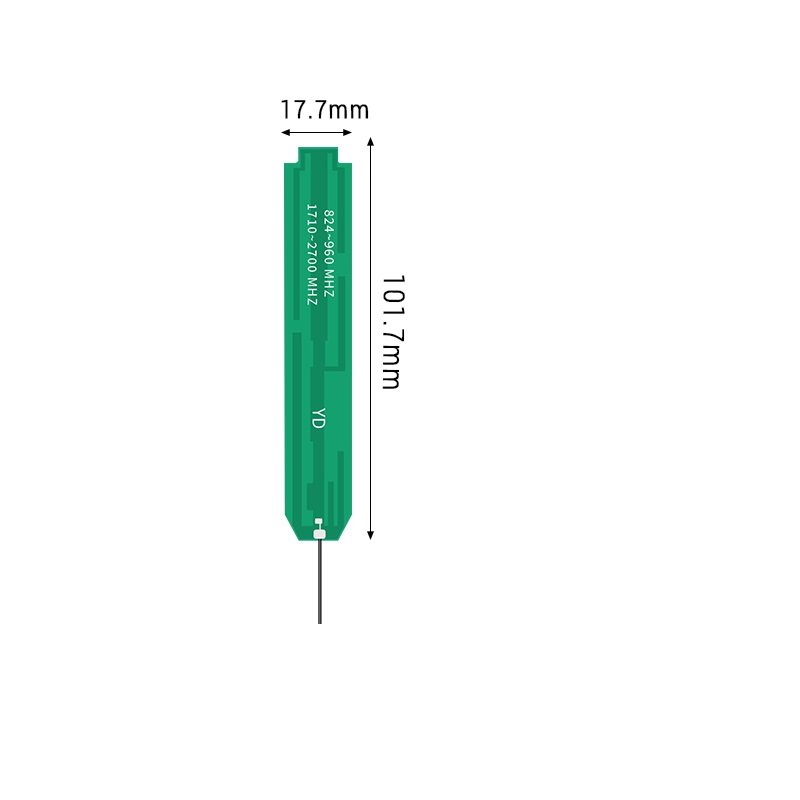

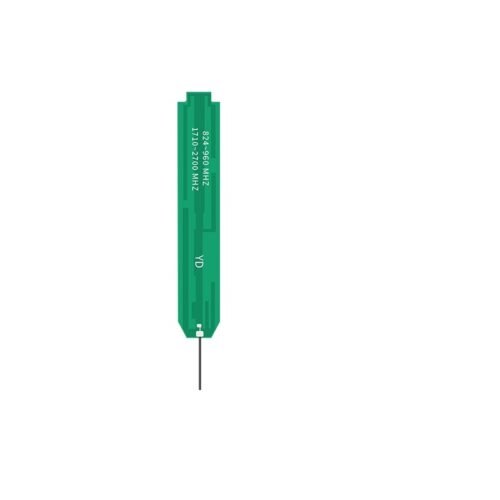

17.7X101.7mm High Gain 4G LTE Bluetooth Internal Adhesive Mount Flexible PCB Antenna With UFL Connector
17.7X101.7mm High Gain 4G LTE Bluetooth Internal Adhesive Mount Flexible PCB Antenna With UFL Connector
- The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
- Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning
product details
|
Item
|
Specifications
|
|
|
Antenna |
Frequency Range
|
4G
|
|
Gain
|
5.5dBi
|
|
|
V.S.W.R
|
≤1.5
|
|
|
Impendance
|
50Ω
|
|
|
Polarization
|
linearity
|
|
|
Mechanical |
Antenna Name
|
PCB internal antenna
|
|
Connector type
|
IPEX/Direct welding( Customized)
|
|
|
Antenna material
|
Pure copper
|
|
|
Antenna cable
|
RG1.13 or Customized
|
|
|
Environmental |
Operating Temperature
|
-30℃~+75℃
|
|
Application field
|
Wireless monitoring/WIFI/ZIGBEE/Bluetooth module/Smart home/Smart wear
|
|
