26mm 2.4G Omnidirectional Built-in Stamped Cellular Antenna for Base Station Vertical Design Stable Performance

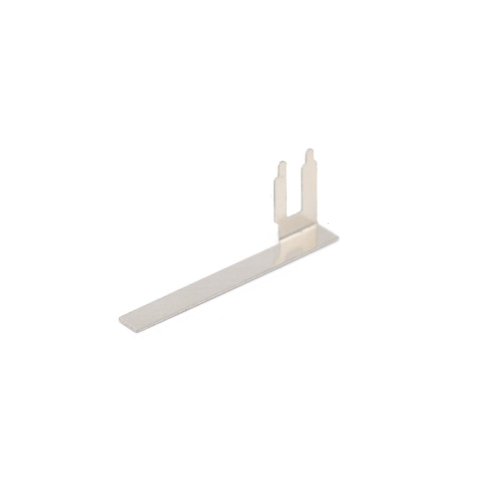

Silver metal stamped antenna with a long flat base and vertical mounting prongs

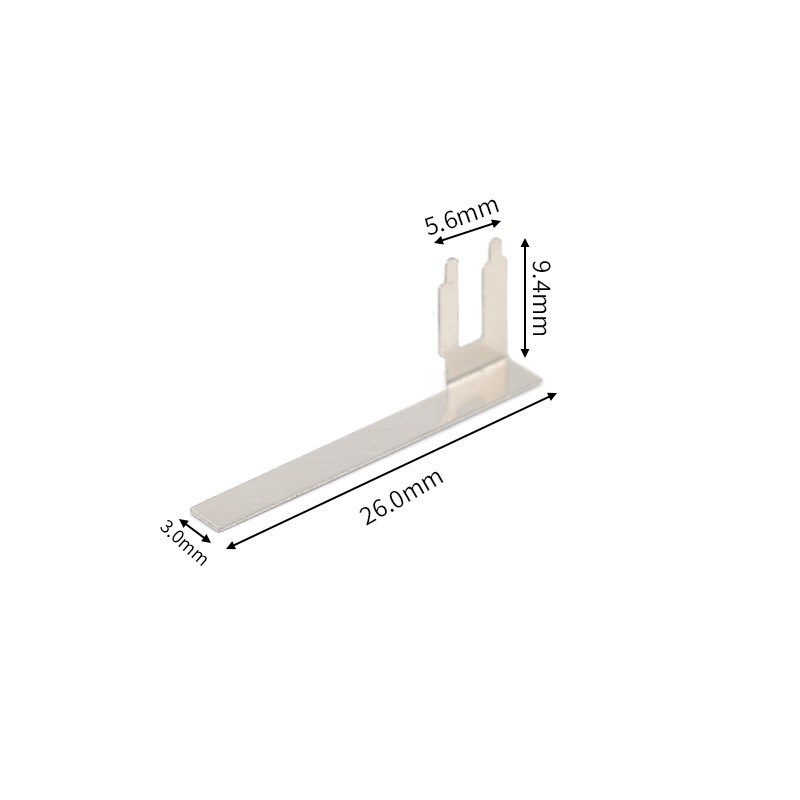

Stamped sheet metal antenna 26mm long with a 9.4mm forked contact tab

26mm 2.4G Omnidirectional Built-in Stamped Cellular Antenna for Base Station Vertical Design Stable Performance

Highly conductive High tensile elasticity, The conductivity of the antenna is strong and has a good compression and stretching effect
ANTI-CORROSION, ANTI-TEMPERATURE, LONG SERVICE LIFEService life test more than 20,000 times Salt spray test 48hours, strict quality control
High impedance matching Antenna and device impedance matchingReduces power loss in wireless devices

product details

This 26 mm stamped antenna uses a vertical design for 2.4 GHz RF boards in base-station and telecom equipment. It provides an omnidirectional pattern with a direct-weld mount, allowing placement inside racks, cabinets, and other confined spaces.

Specifications

Connector Type: Direct welding
Frequency Range: 2.4G
Gain: 2dBi
V.S.W.R: ≤2.0
Impedance: 50Ω
Polarization: linearity
Radiation Direction: omnidirectional
Antenna Name: Shrapnel antenna
Power Capacity: 2W
Antenna Material: Stainless steel
Operating Temperature: -40℃~+80℃
Storage Temperature: -40℃~+85℃

Applications

The 2.4G band supports Wi-Fi, ZigBee, and other short-range wireless links used in base-station monitoring, telecom peripherals, and industrial equipment. The stainless-steel construction and stable omnidirectional pattern suit continuous operation in such enclosures.

Yunding supports OEM/ODM projects with dimension and frequency customization.
