50.5X35.6mm Embedded 13.56MHz Flexible NFC Antenna with Reverse Ferrite Layer & Adhesive Backing

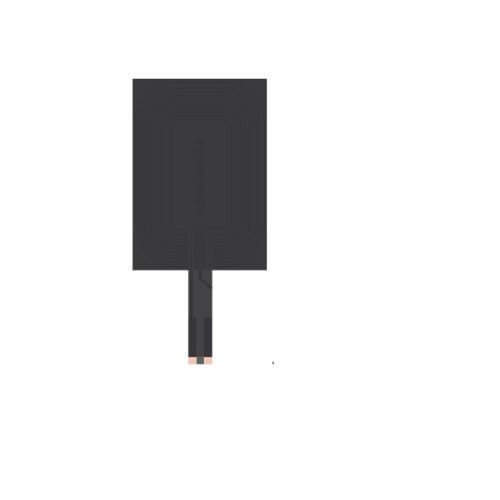

Black rectangular flexible NFC antenna with visible coil traces and ribbon tail

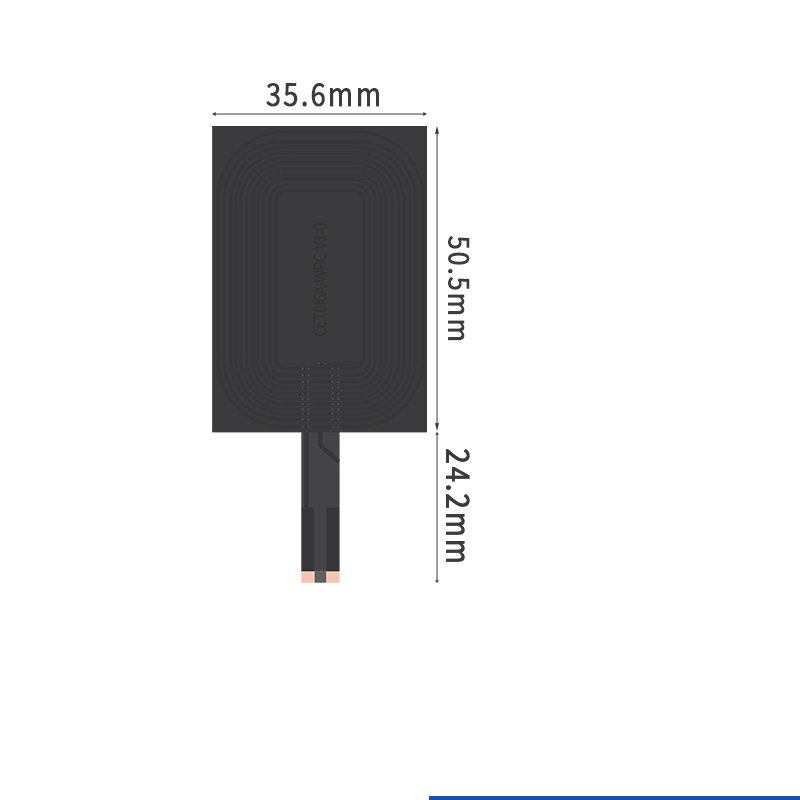

Black NFC antenna 50.5mm tall and 35.6mm wide with 24.2mm tail strip

50.5X35.6mm Embedded 13.56MHz Flexible NFC Antenna with Reverse Ferrite Layer & Adhesive Backing

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

The 50.5 x 35.6 mm flexible NFC antenna adds a reverse ferrite layer and adhesive backing, so it can be embedded against enclosure surfaces while keeping the reading field stable. It runs at 13.56 MHz for internal RFID and NFC use.

Specifications

Frequency Range: 13.56MHz
Impedance: 50Ω
V.S.W.R: ≤1.5
Gain: 4dBi
Polarization: linearity
Antenna Name: NFC internal antenna
Connector Type: IPEX / Direct welding (Customized)
Antenna Material: Pure copper
Antenna Cable: RG1.13 or Customized
Operating Temperature: -30℃ ~ +75℃
Application Field: Wireless monitoring / WIFI / ZIGBEE / Bluetooth module / Smart home / Smart wear

Applications

NFC and RFID at 13.56 MHz are used for access control, contactless payment, identity checks, smart-home entry, and reader-to-tag communication. It also covers wireless monitoring, WiFi, ZigBee, Bluetooth module terminals, and smart wear.

OEM and ODM customization covers antenna size, cable, and mounting for embedded designs.
