57X17.5mm Custom Band IPEX UFL MHF3 MHF4 Antenna FPC Flexible 4G Wifi Antenna With Adhesive Mount

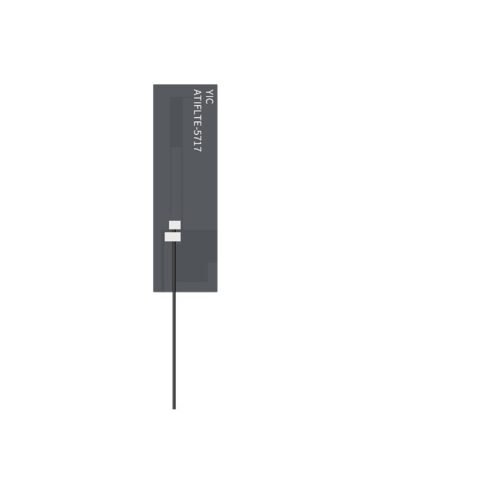

Black rectangular FPC antenna with black cable and YIC ATIFLTE-5717 text

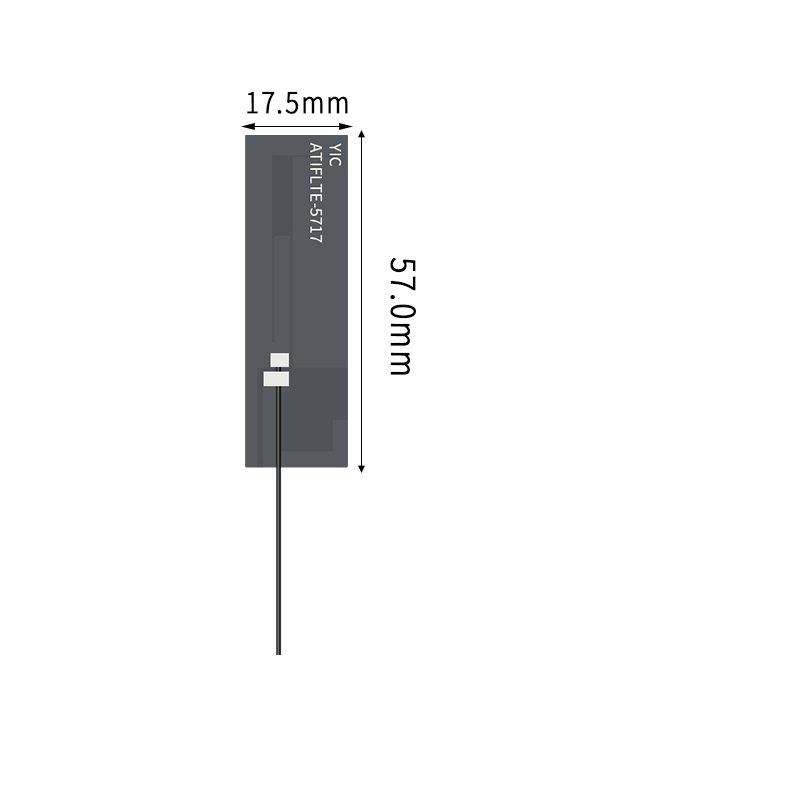

FPC antenna 57mm tall and 17.5mm wide with printed label and lead

57X17.5mm Custom Band IPEX UFL MHF3 MHF4 Antenna FPC Flexible 4G Wifi Antenna With Adhesive Mount

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

Measuring 57 x 17.5 mm, this flexible FPC antenna comes with IPEX, UFL, MHF3, or MHF4 connectors to match a host 4G or WiFi module. The adhesive mount fixes the radiator in place during assembly, a practical fit for low-profile designs.

Specifications

Antenna Name: FPC internal antenna
Connector Type: IPEX / Direct welding (Customized)
Frequency Range: 698-2700MHz
Gain: 4dBi
V.S.W.R: ≤1.5
Impedance: 50Ω
Polarization: linearity
Antenna Material: Pure copper
Antenna Cable: RG1.13 or Customized
Operating Temperature: -30℃ ~ +75℃
Application Field: Wireless monitoring / WIFI / ZIGBEE / Bluetooth module / Smart home / Smart wear

Applications

With its 698-2700 MHz band and connector options, the antenna suits 4G LTE routers, WiFi access points, IoT modules, and ZigBee/Bluetooth gateway boards. It also fits wireless monitoring and smart-home devices.

OEM and ODM customization is available, including alternative connectors, cable lengths, and cable assemblies.
